Acorn 130 Outdoor Stairlift

Ensure reliable, safe access to all outdoor spaces of your home in Texas with the custom designed Acorn 130 Outdoor Stairlift.

No major structural changes required to your home during installation

Quick and easy fit onto steps, not the wall

If an obstruction is encountered the Curved Stairlift is designed to stop automatically

Installed with a weather resistant outdoor cover for extra protection

Maximum weight of 300lbs

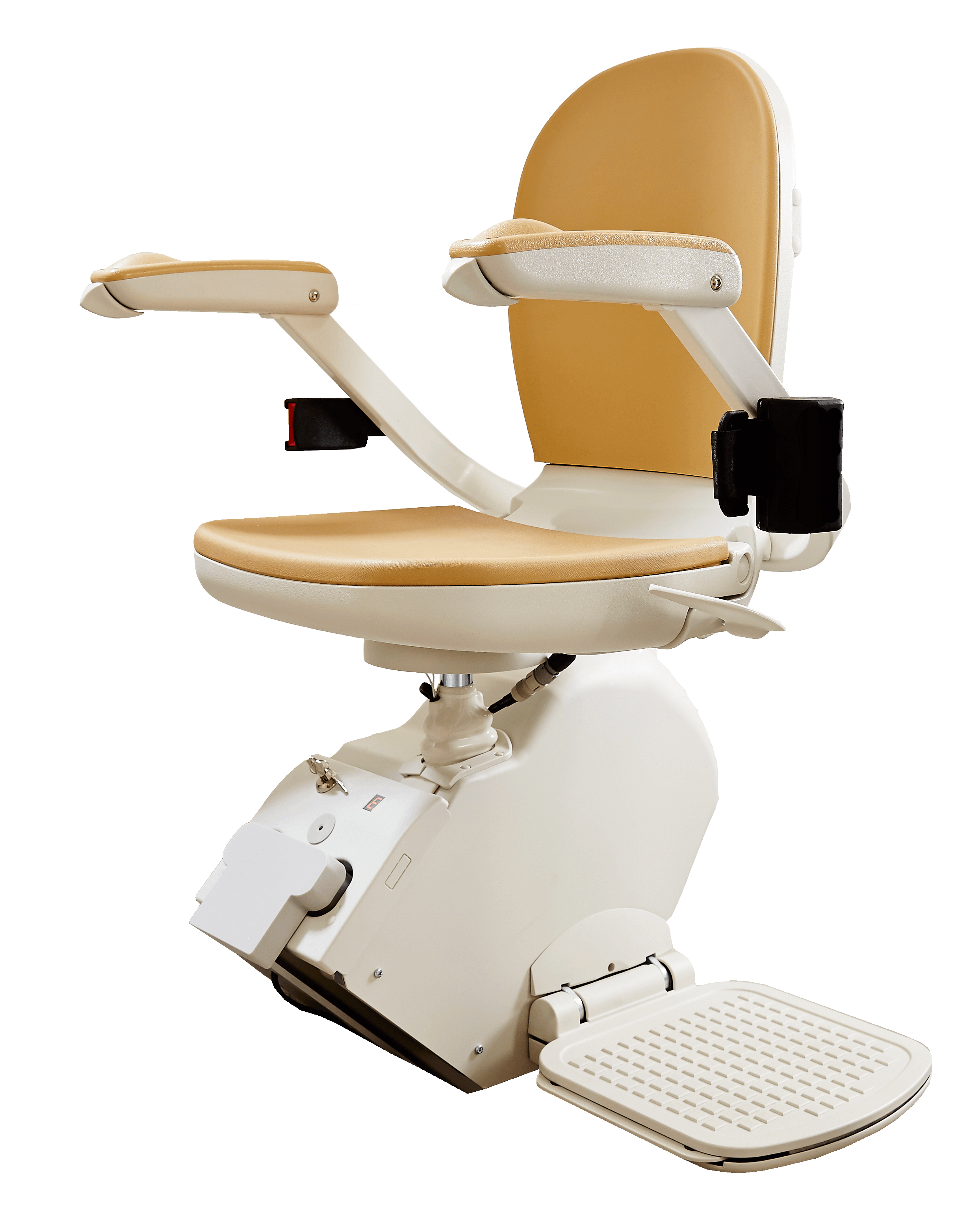

Acorn outdoor Stairlift in texas front view

CLICK HERE FOR TECHINAL DETAILS

Seat	Standard Indoor 130	Power Swivel 130	Outdoor 130
Short seat post	40-55Â°	N/A	N/A
Standard seat post	29-55Â°	36-55Â°	27-55Â°
Tall seat post	23-55Â°	23-55Â°	N/A

Maximum Rail Length
10 metres	394 inches

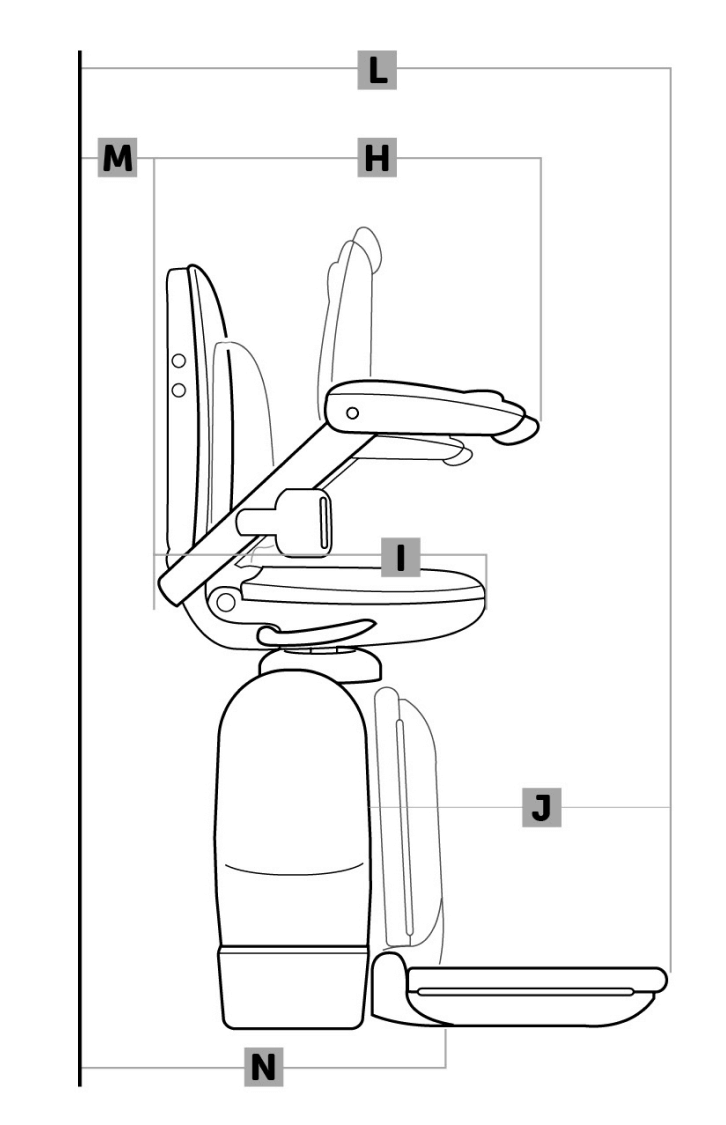

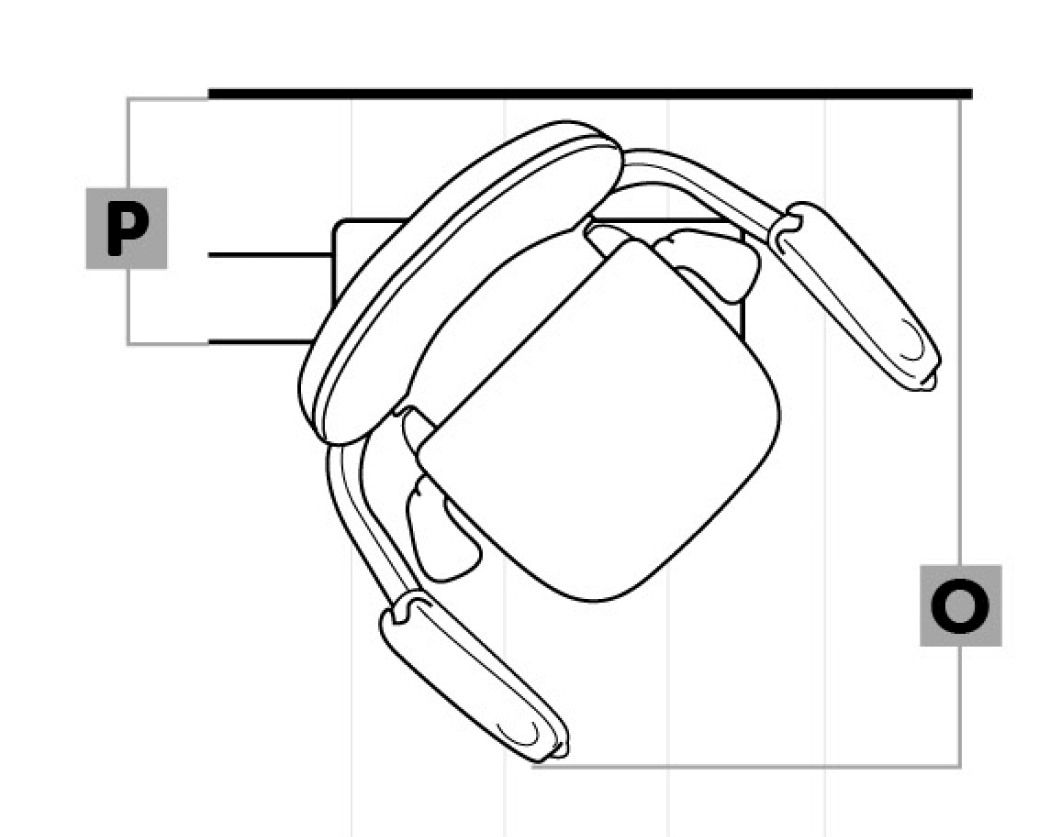

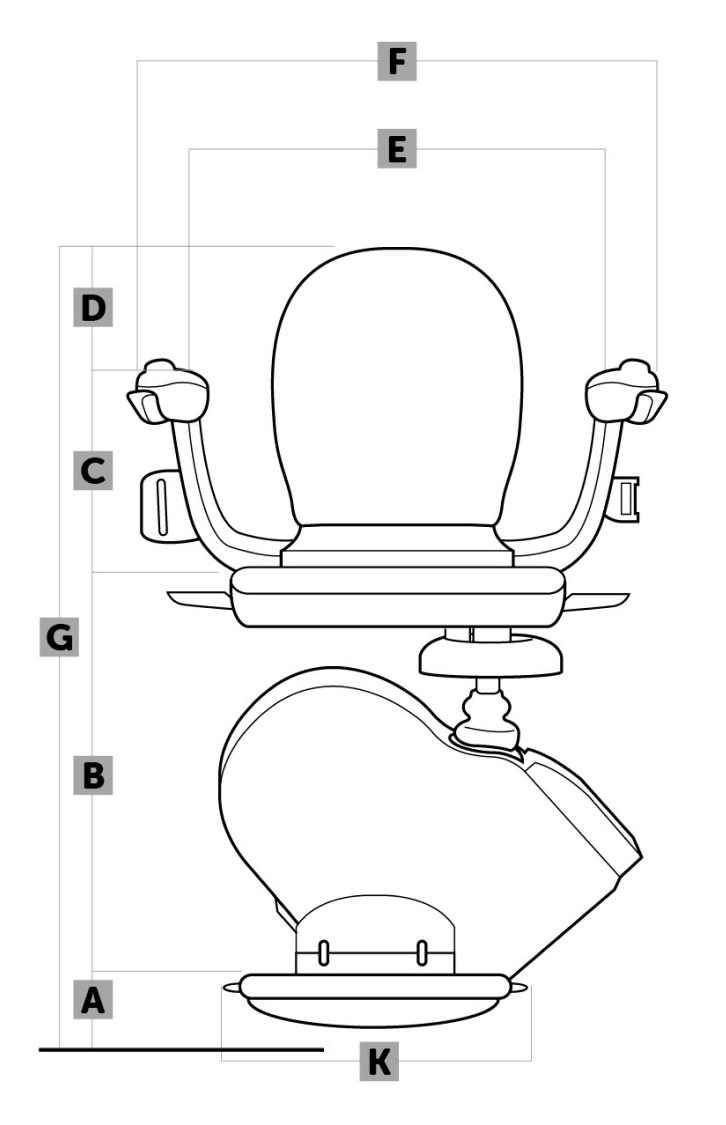

Dimensions		mm	inch
A	Floor to top of footrest	95	3.75
B	Top of footrest to top of seat (Short) (Tall)	445 (410) (505)	17.5 (16.25) (19.75)
C	Top of seat to top of arms	250	9.75
D	Top of arms to top of seat back	190	17.5
E	Width between armrests (Wide arm version)	445 (495)	17.5 (19.5)
F	Overall width	605	23.75
G	Overall height to floor	980	38.5
H	Length of arms from seat back	470	18.5
I	Length of seat base from seat back	435	17
J	Length of footrest	325	12.75
K	Width of footrest	310	12.25
L	Front of footrest to stringer	570	22.5
M	Back of seat to stringer	13	0.5
N	Folded width	310	12.25
O	Minimum width required to swivel at top	670	26.25
P	Distance from front of rail to stringer (Wide arm version)	215 (240)	8.5 (9.5)

Specifications
Motor output speed	No greater than 0.15 metres per second
Method of drive	Rack and Pinion
Carriage Power	24v DC batteries
Motor Power	0.25KW
Maximum capacity	127kg
Maximum capacity HD version	159kg
Power supply input range	50-60Hz, 120-240V AC

Acorn outdoor Stairlift installation in texas

Installing the Acorn 130 Outdoor Stairlift in your home in Texas

Once you have decided you would like your custom stairlift to be fitted in your home in Texas a few days is all that is required to complete installation of your Acorn Outdoor Stairlift.

Aftercare services for your Acorn 130 Outdoor Stairlift in your home in Texas.

At Acorn aftercare is a top priority, as well as to us as a partner of America's leading stairlift manufacturer. We want to ensure you're always entirely happy with your Acorn Outdoor Stairlift.
Acorn's dedicated help desk is always just a phone call away 365 days a year. Extended stairlift warranties are available too, which means technicians will visit your home in Texas in the unlikely event of a breakdown and also covers the cost of all callouts, parts and labor.

Acorn outdoor Stairlift atercare in texas

Arrange your FREE quote using the form below for a stairlift in Texas.

Simply enter your details below and a trusted Acorn representative will be in touch to arrange a home survey and to provide you with your free no obligation quotation.
